Configuring Microsoft Entra ID SAML

Before configuring Ubersmith's SAML authentication module to use Microsoft Entra ID, you will to be able to access your instance with https. This is required because the identity provider (IdP, in this case, Microsoft) will require the login URL to use HTTPS.

Microsoft Entra ID (Formerly Microsoft Azure AD) Configuration

This documentation assumes the following prerequisites have been met:

• A Microsoft Azure account with appropriate privileges to create SAML Applications
• An Ubersmith administrator account with appropriate privileges to edit User Authentication settings

Create "Enterprise Application"

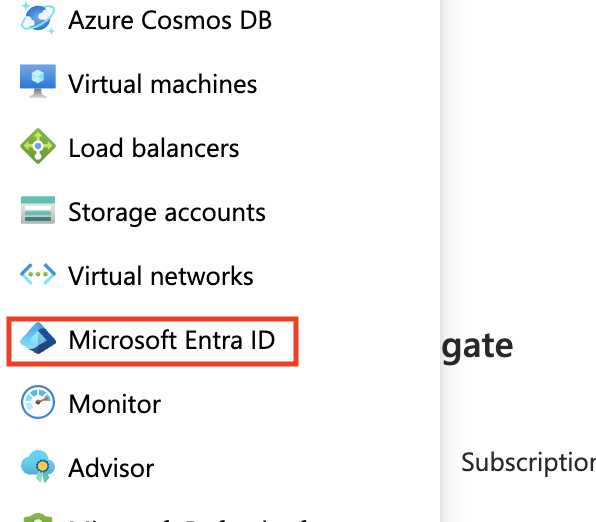

On the left menu, click Entra ID

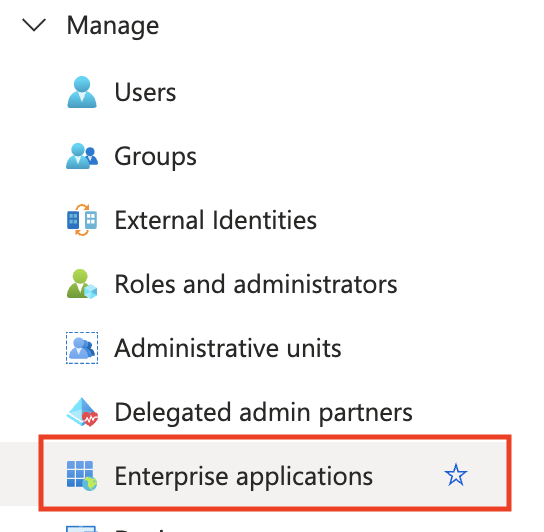

Click Enterprise Application

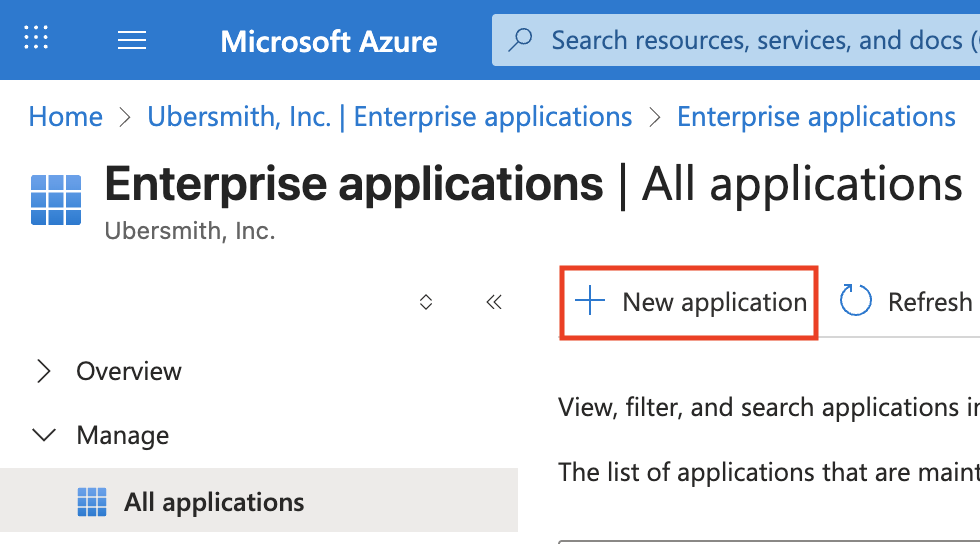

Click + New application

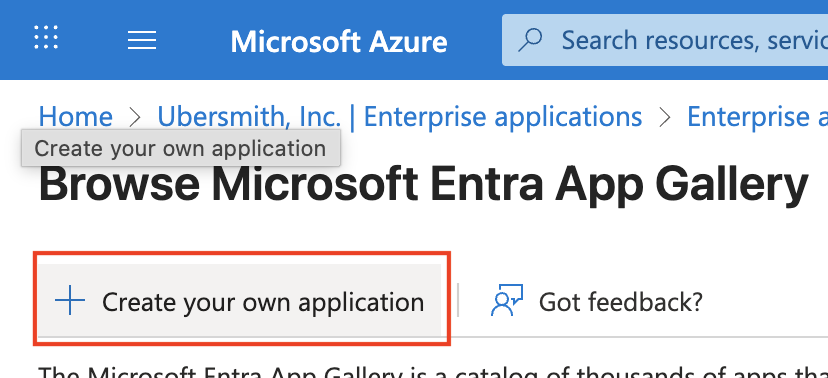

Select + Create your own application

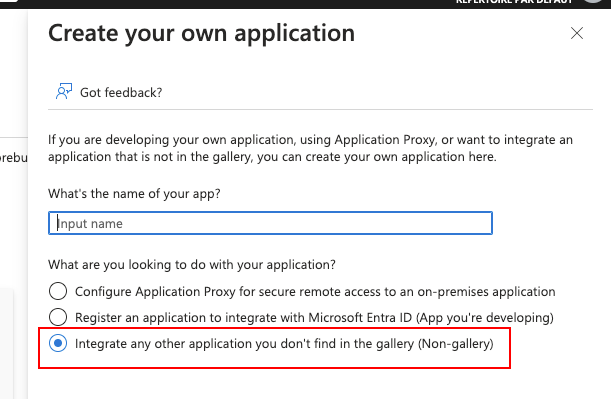

Name your application (ex. "Ubersmith") and make sure to select the Non-gallery option

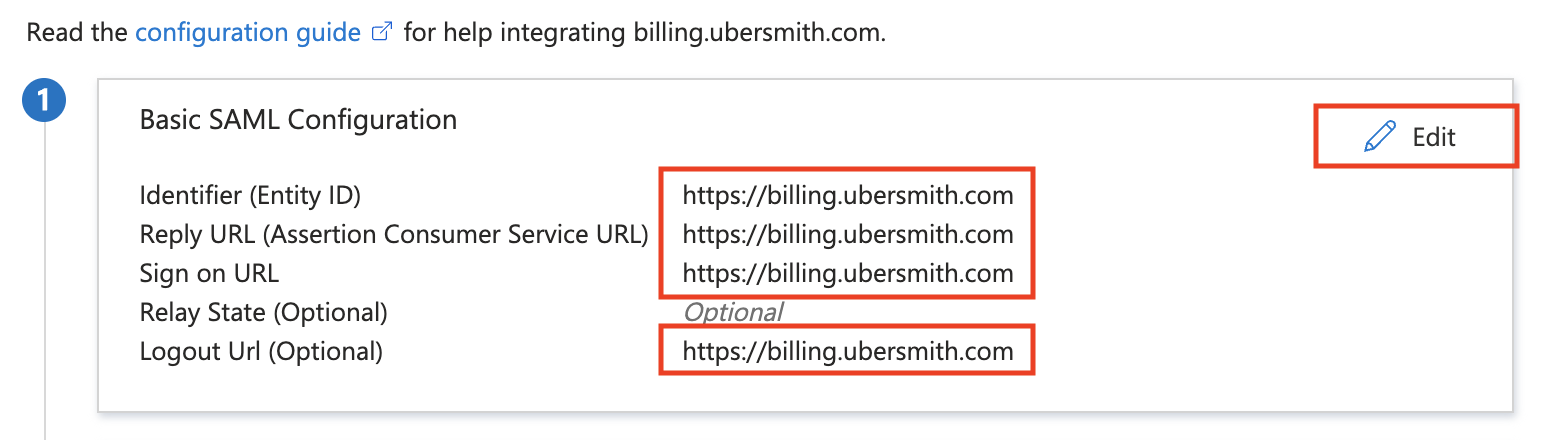

Configure the Basic SAML Configuration information

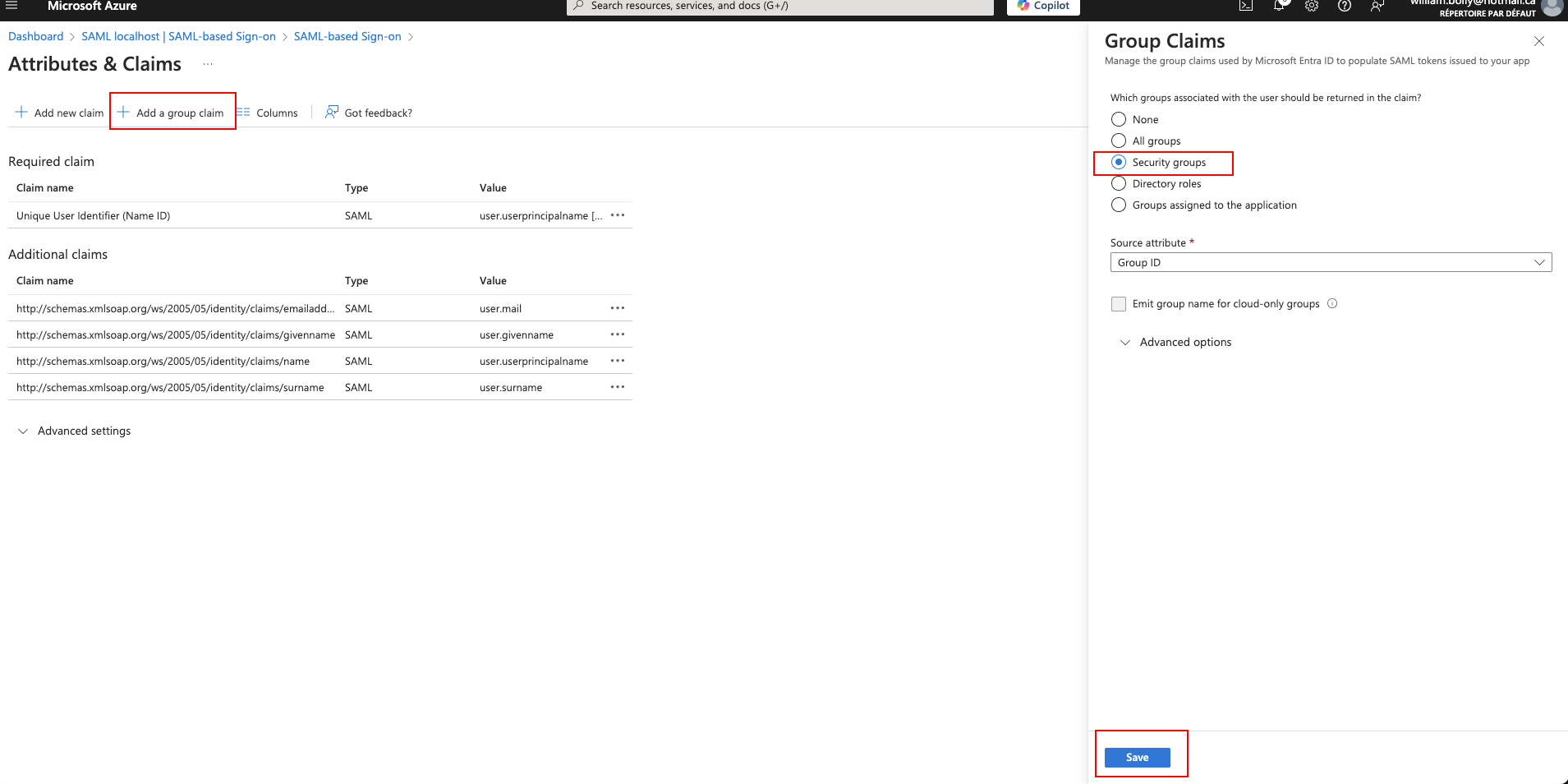

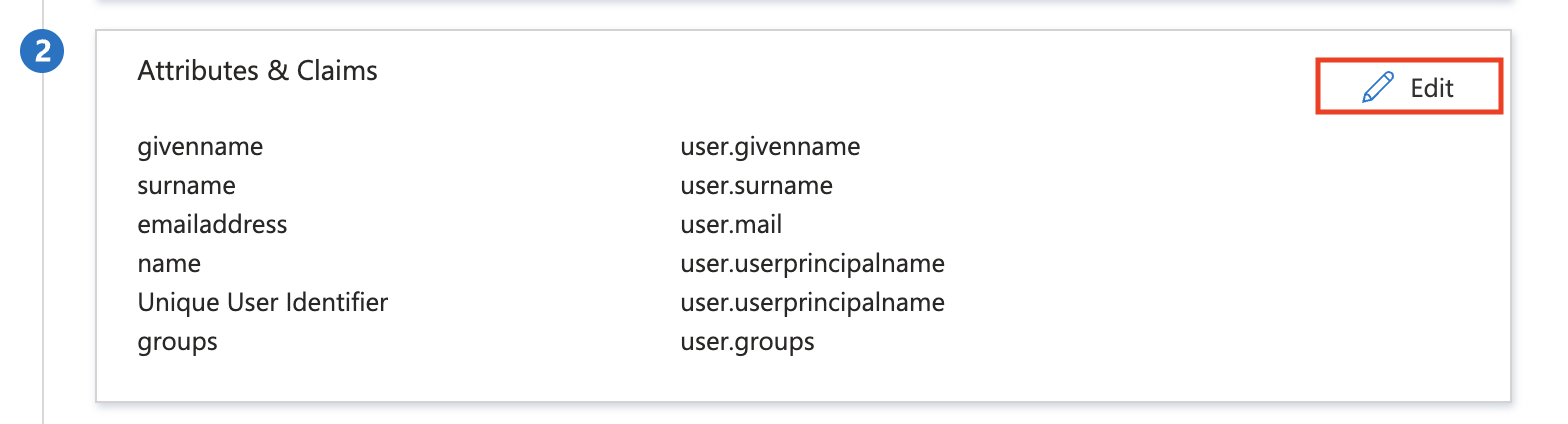

Configure the Attributes & Claims
The default configuration provided by Microsoft already offers all fields that Ubersmith requires -- except a group claim, which must be added.

For the group claim, use Security groups.

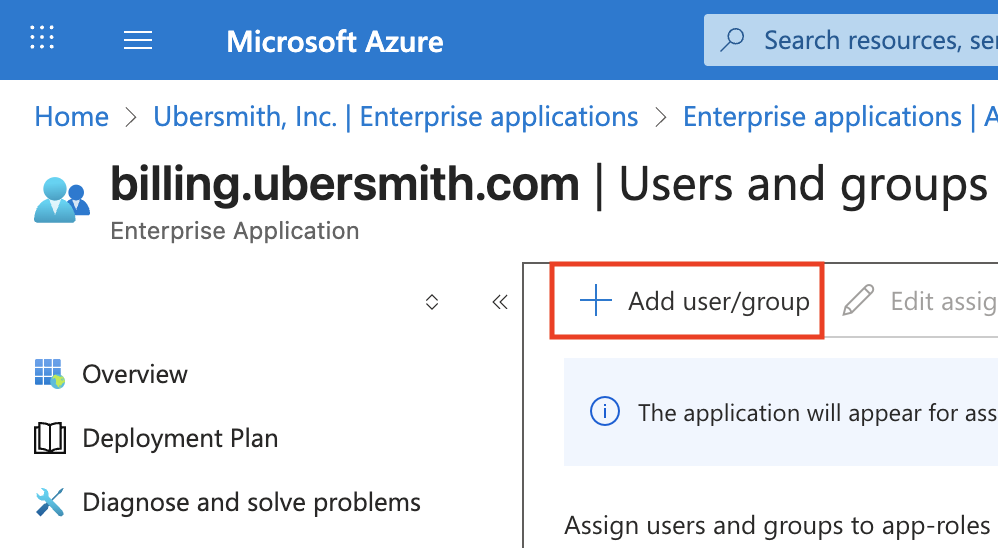

Configure Users and groups
In order for your Entra ID users to login, you must give users (or groups) access to the application. Bear in mind that you will be able to associate the groups defined in Entra ID to Roles within Ubersmith.

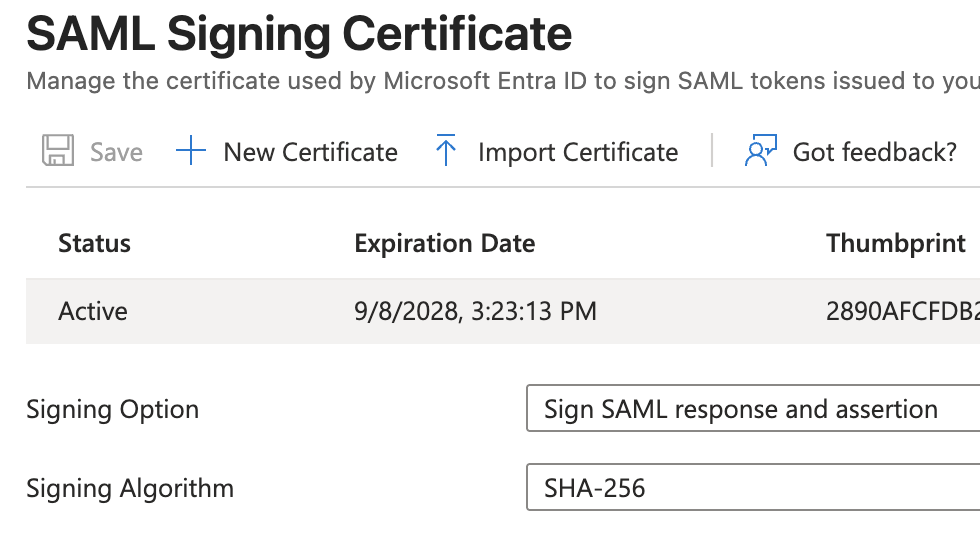

Enable Signing
To take advantage of encryption, additional settings must be enabled for your Entra ID SAML application.

Configure Ubersmith

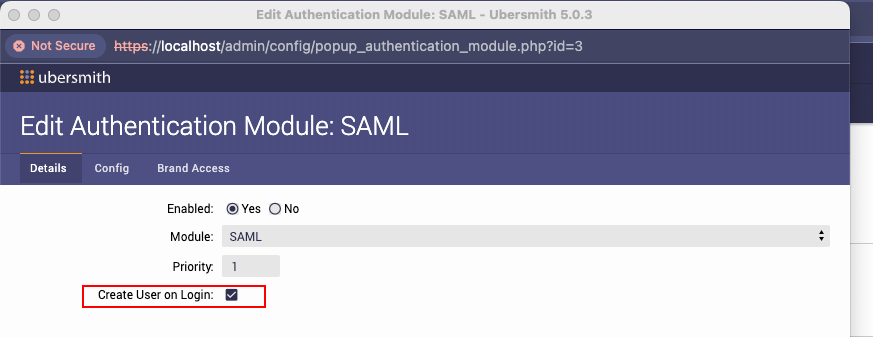

In Settings, click User Authentication. Click Add New Authentication Module.

• Enabled: Yes
• Module: SAML
• Priority: 1 (or appropriate)
• Create User on Login: Checked

Check the Create User on Login so newly added Microsoft Entra ID users will be created in Ubesmith when they first log in to Ubersmith.

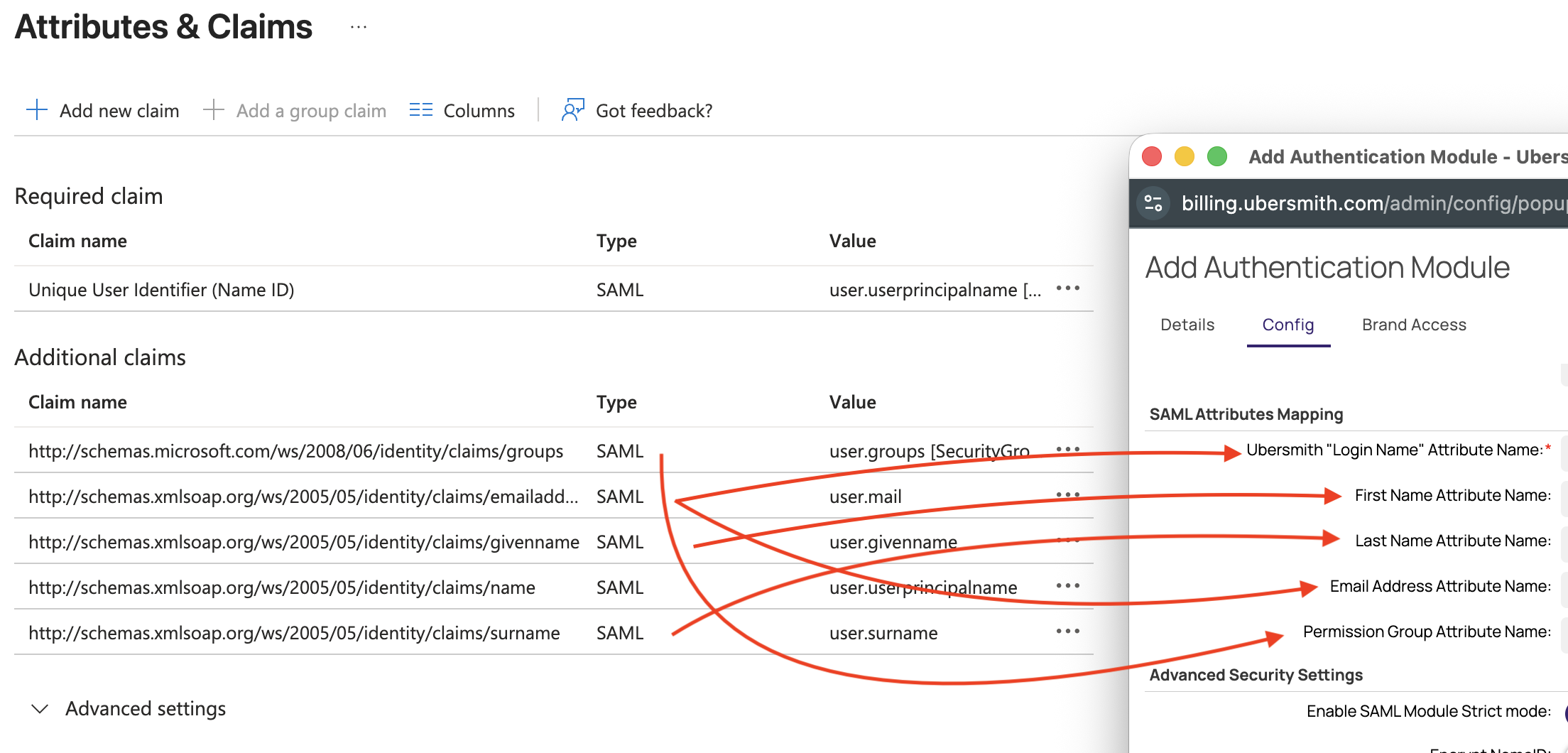

Use the Attributes & Claims values from your Entra ID configuration to populate the fields within the Authentication Module popup.

Ensure the Entity ID configured in your Entra ID application matches the Service Provider (SP) Entity ID configured in Ubersmith. This will be the HTTPS URL for your Ubersmith installation; for example, https://myubersmith.yourdomain.com.

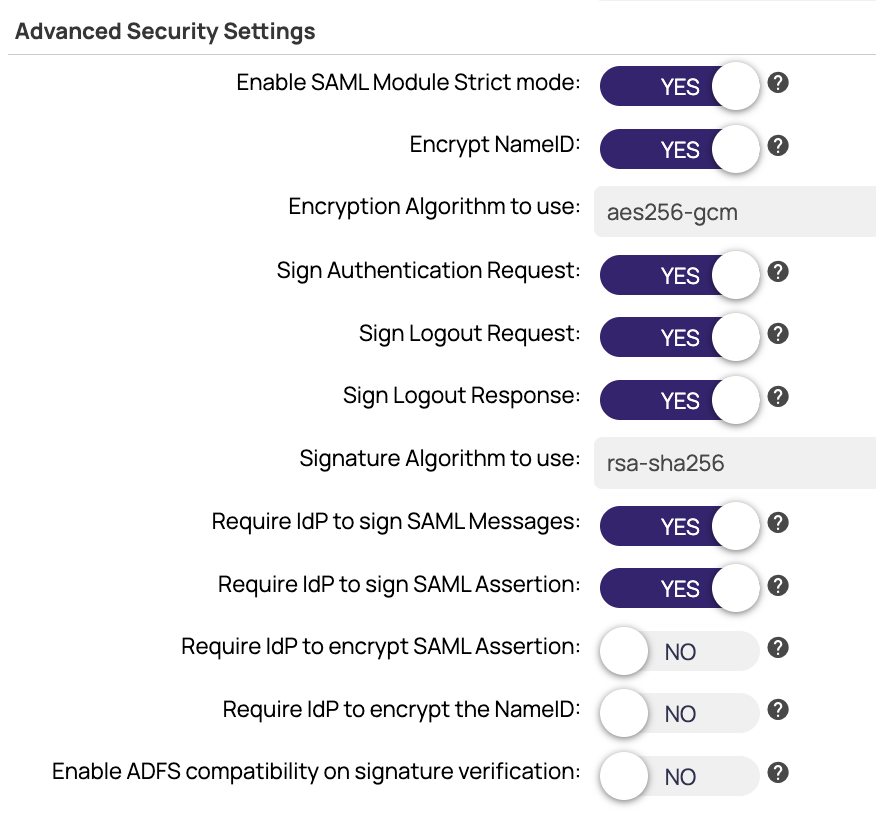

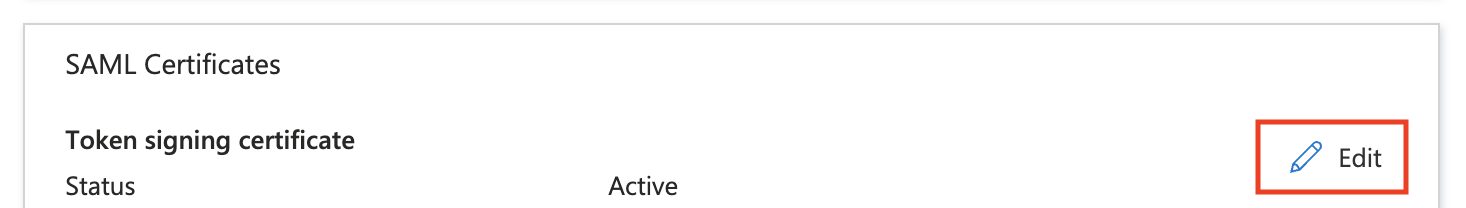

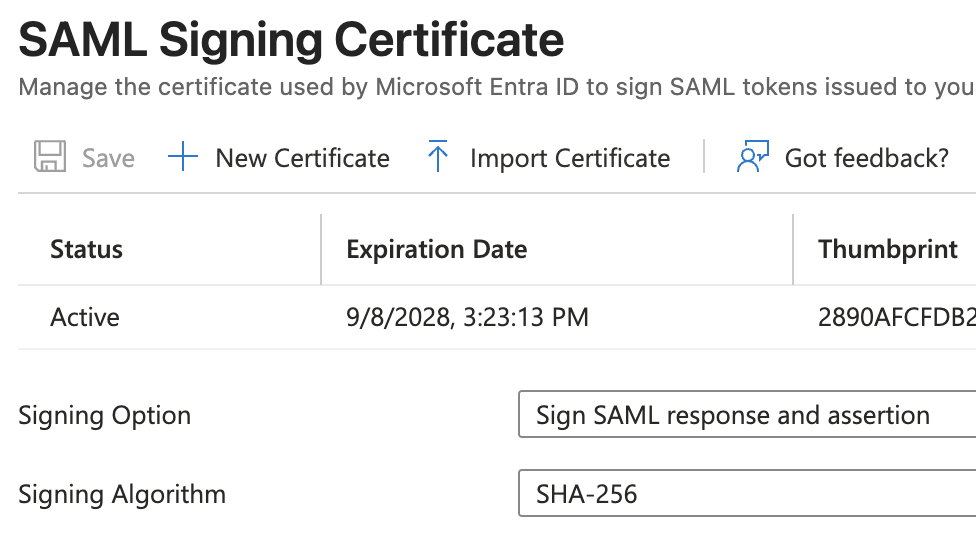

If needed, use the command from the popup's tooltip to generate your SP x509 Certificate and private key. To take advantage of encryption, additional settings must be enabled for your Entra ID SAML application and within Ubersmith. Click Edit in the SAML Certificates menu and enable the Sign SAML response and Assertion option. Download the Certificate (Base64) file from your Entra ID Application, and paste it into the IdP x509 Certificate field in the Ubersmith configuration.

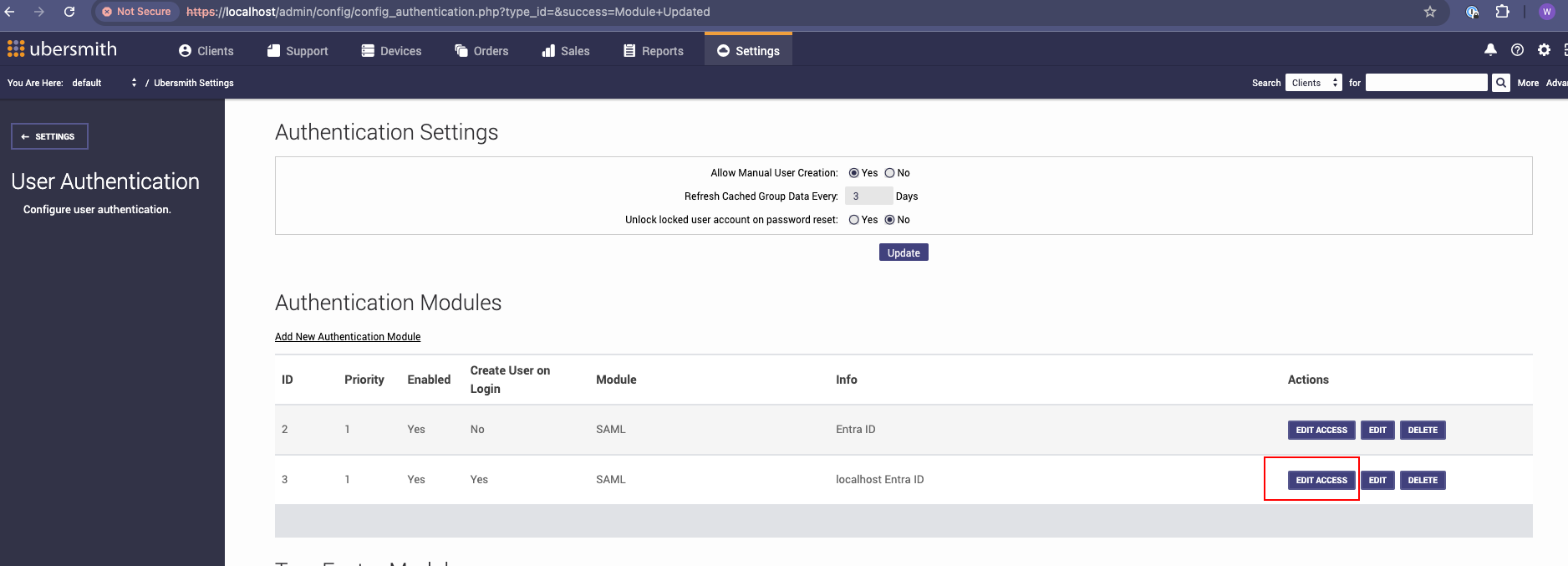

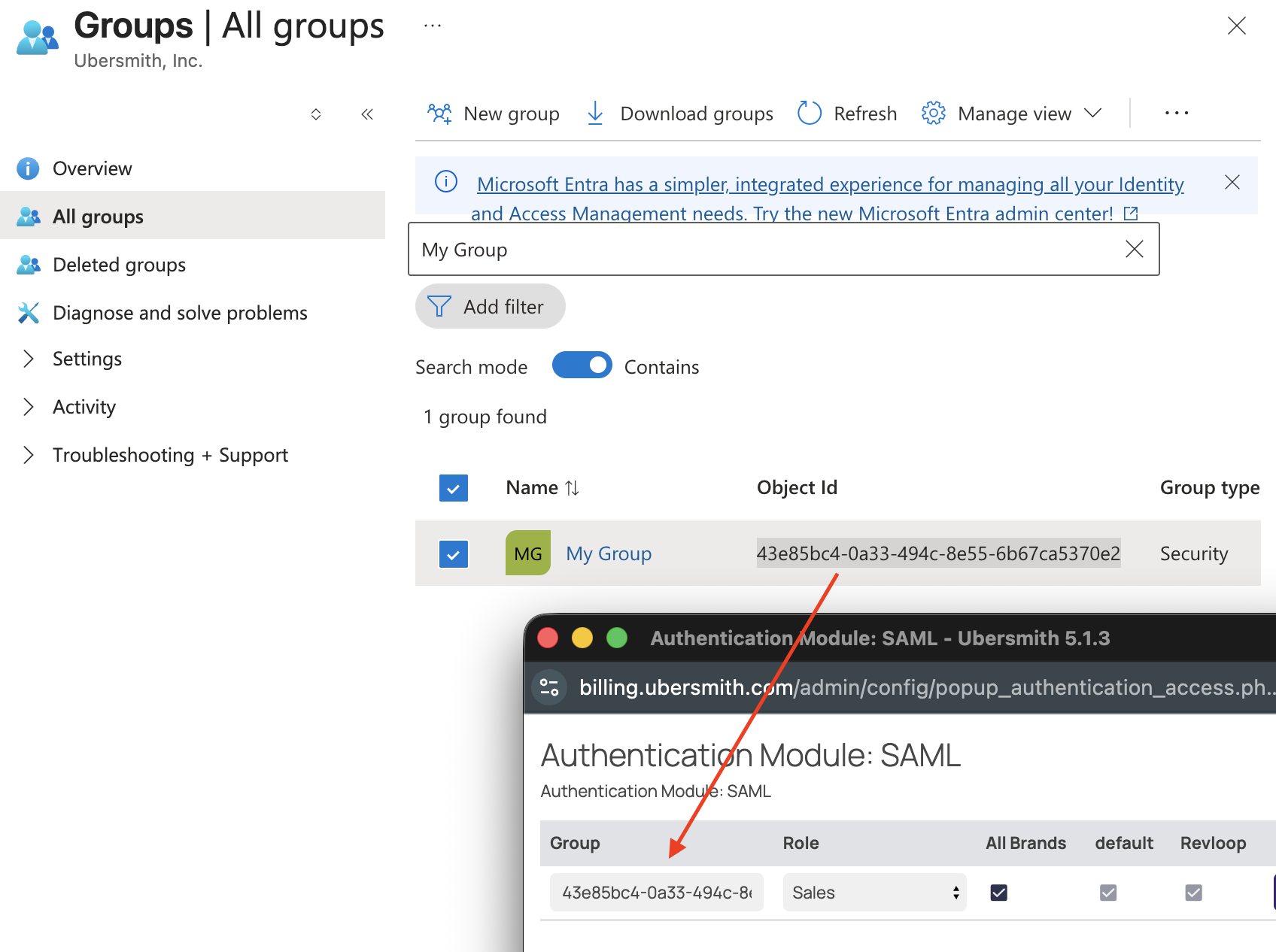

Save the Authentication Module. You can now, map Ubersmith's roles to Microsoft Entra groups:

Unfortunately, at this time, Entra ID Object Ids must be used for the role mapping, rather than the Group Names.
